BMW gesture control - the next level of iDrive interaction

Bianka Rommel

Oct 19, 2020

BMW gesture control - the next level of iDrive interaction

Only a few years ago, you might have looked rather suspicious to onlookers randomly twirling your hand inside your BMW. Today, it wouldn’t come as much of a suprise that you’re actually interacting with your iDrive system using your hand gestures... or would it?

If you haven’t heard about BMW’s gesture control feature yet, and you still think BMW drivers are swatting flies away from their iDrive systems, we’re here to tell you all about this innovative feature — how it works, which BMWs have it and how to activate it in your vehicle.

BMW gesture control

What is BMW gesture control?

BMW gesture control is BMW’s latest feature, that allows drivers to control select iDrive functions with the use of hand gestures captured by a 3D camera. Making simple moves, you can accept or decline a phone call, turn up or down the audio volume, set navigation destinations or change the angle in the 360 degree view of the vehicle. BMW gesture control technology was made with helping drivers to safely interact with the iDrive system while remaining focused behind the wheel in mind. It might come in pretty handy, especially if you’d rather not take your eyes off the road in difficult situations, but still want to be able to answer an important call from your work or spouse ;)

BMW gesture control technology

How does BMW gesture control work?

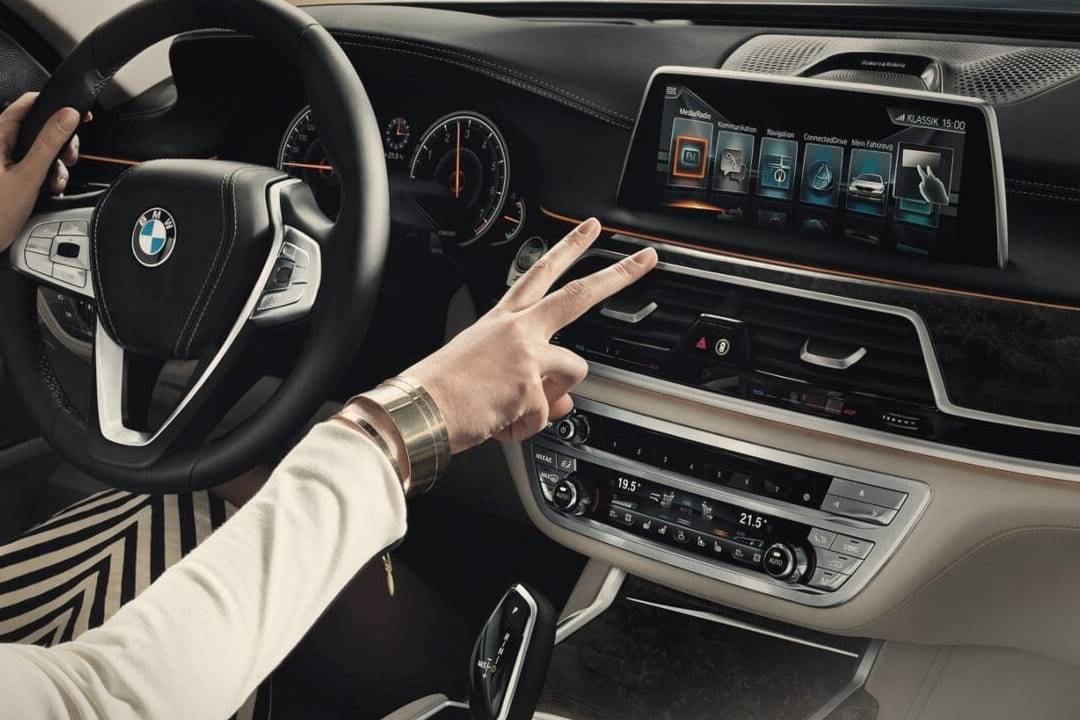

It’s all about the 3D technology. BMW gesture control sensors are located in the roof lining of the car, next to the rear view mirror. They translate a set of predefined hand gestures made in front of the center console, above the gearshift lever. For the system to work properly, the driver should gesticulate close to the screen, as shown in the picture below.

Got a small factory screen? Check what are the iDrive screen upgrade options for your BMW.

How does BMW gesture control work?

BMW gesture control — how to use it?

Frankly, everything is pretty straightforward once you master a small set of intuitive gestures. The BMW gesture control list includes:

  • Accepting a Call  / Confirming pop-up: Point one finger towards the iDrive screen and pull it back
  • Rejecting a Call / Closing pop-up: Swipe your hand to the right
  • Turning up the volume: Circle your finger clockwise
  • Turning down the volume: Rotate your finger counter-clockwise
  • Changing the 360-degree Rear View Camera angle: Pinch and drag to the left or right
  • Skip back: Move extended thumbs to the left
  • Skip forward: Move extended thumbs to the right
  • 2 configurable gestures: Extend index and middle fingers, or extend 5 fingers, form a fist and extend 5 fingers again

Need some illustration? Hop over to this video and watch how to perform some of the hand gestures.



What cars come with gesture control BMW?

 If you’re all excited about the possibility of activating a brand new feature in your BMW, you’ll have to keep your enthusiasm in check. Only the latest G-Series BMW models are equipped with the gesture control function, specified as an option to be activated.

 The feature premiered in 2015 with the coming of the G11/G12 7 Series BMW, that came with an NBT Evo ID6 iDrive, and nowadays can be found in almost every BMW with Operating System 7.0, which supports the newest MGU head unit.

 Want to know what an NBT Evo ID6 and MGU iDrive are? Check out our blog post.

 The list of G-Series BMWs with an Operating System 7.0 (MGU iDrive) includes:

  • BMW 3 Series (G20)
  • BMW 4 Series (G22)
  • BMW 5 Series (G30)
  • BMW 6 Series (G32)
  • BMW 7 Series (G11)
  • BMW 8 Series (G15)
  • BMW X3 (G01)
  • BMW X4 (G02)
  • BMW X5 (G05)
  • BMW X6 (G06)
  • BMW X7 (G07)
  • BMW Z4 (G29)

Is BMW gesture control standard?

Well, not always. Sometimes it may be standard, other times an option to be retrofitted. It all comes down to whether you are equipped with a camera in the roof function center or not. While some G-Series cars already have a sunroof module with a camera (options S6U8A and S6U3A) built in, there can be BMWs that lack it. In this case, you’d have to get a full roof function center hardware retrofit.

What you also want to remember is that BMWs from some countries do not feature the gesture control option at all, so your only way to have it is through retrofit. To check if gesture control is included in your BMW, contact your dealer.

Gesture control 3D camera

How to retrofit BMW gesture control?

If BMW hand gesture control wasn’t included in your BMW with iDrive 7.0, do not despair. BimmerTech offers a BMW gesture control retrofit for selected cars with Operating System 7.

Here’s the list of vehicles supporting the BMW gesture control retrofit:

  • 3 Series G20
  • 3 Series G21
  • 4 Series G22
  • 5 Series F90 M5
  • 5 Series G30
  • 5 Series G31
  • 6 Series G32
  • X3 G01
  • X3 M F97
  • X4 G02
  • X4 M F98
  • X5 G05
  • X5 M F95
  • X6 G06
  • X6 M F96

The installation of the kit is very straight forward. It’s all about replacing your overhead console for a sunroof module with a 3D camera, and adding 2 wires from the overhead console to a module in the passenger footwell area. The procedure takes around 30 min, up to 1 hour and is 100% reversible.

subscription_banner

How to activate BMW gesture control?

If you have a camera in the roof function center and the gesture control feature in your iDrive, you can either activate it through BMW Intelligent Personal Assistant, or by going to your iDrive settings. Here’s what you should do when choosing the latter:

  1. Select ‘Car’ in your iDrive menu.
  2. Then enter ‘Settings’.
  3. Go into ‘General Settings’.
  4. Search for ‘Gesture control’.
  5. Choose whether you’d like to activate or deactivate gesture control.

Gesture control activation in BMW

What you can also do in the gesture control settings is check how to properly execute a given gesture — either set the visual guide, which will show you how to perform it, or get an audio confirmation after a correctly made gesture.

Gesture control activation

If you feel there’s a lack of gestures controlling useful functions, you can additionally assign two distinctive gestures for two chosen functions of your iDrive.



Want to realize the BMW gesture control potential to the fullest? Go to the interactive digital owner’s handbook stored in your MGU iDrive menu and search for ‘Possible Gestures’ — there you’ll get to go through all available BMW hand gestures, which will help you improve your everyday driving experience.
