BMW AMP UPGRADE | Now compatible with 97% of BMWs!

BMW Gesture Control Retrofit

$[[product.originalPrice | price]]

Check this product is right for your car:

Let us find the right version for you:

* Only by entering your VIN can you be 100% sure
you get the right version of the product for your vehicle.

[[vinError]]

Where to find your VIN?

Let us find the right version for you.

We'll confirm pricing, compatibility and product details for your car:

Addons

[[drop.name]]*

Please select an option before adding to the cart.

Warranty option

[[limitedWarrantyText]]

You Save [[savedTotal | price]]


Please click on the below checkbox to proceed.

Total Price:
$[[originalPrice|price]] $[[price|price]]

In stock, only [[product.stock_left]] left

In stock, only [[product.stock_left]] left


Delivery time: [[product.deliveryTime]]


[[product.threshold]]

Features

Properties

Need help with installation? We will help

[[installer.name]]
[[installer.miles]] miles from you
[[installer.type]] Authorized Dealer
(This company does not offer installation)
[[installer.type]] Authorized Installer [[installer.type]] Authorized Installer
(This company only offers installation of products that were purchased through them, not directly from BimmerTech)
[[installer.type]] Authorized Installer
Installations by appointment only.
Contact us for more informaton:
No installers found nearby. Please clear your address and search the map manually to find more installers.

You might be interested in

All products 10% OFF

Free DIY Essentials? Use coupon* XMAS2022

*For orders above $700

Description

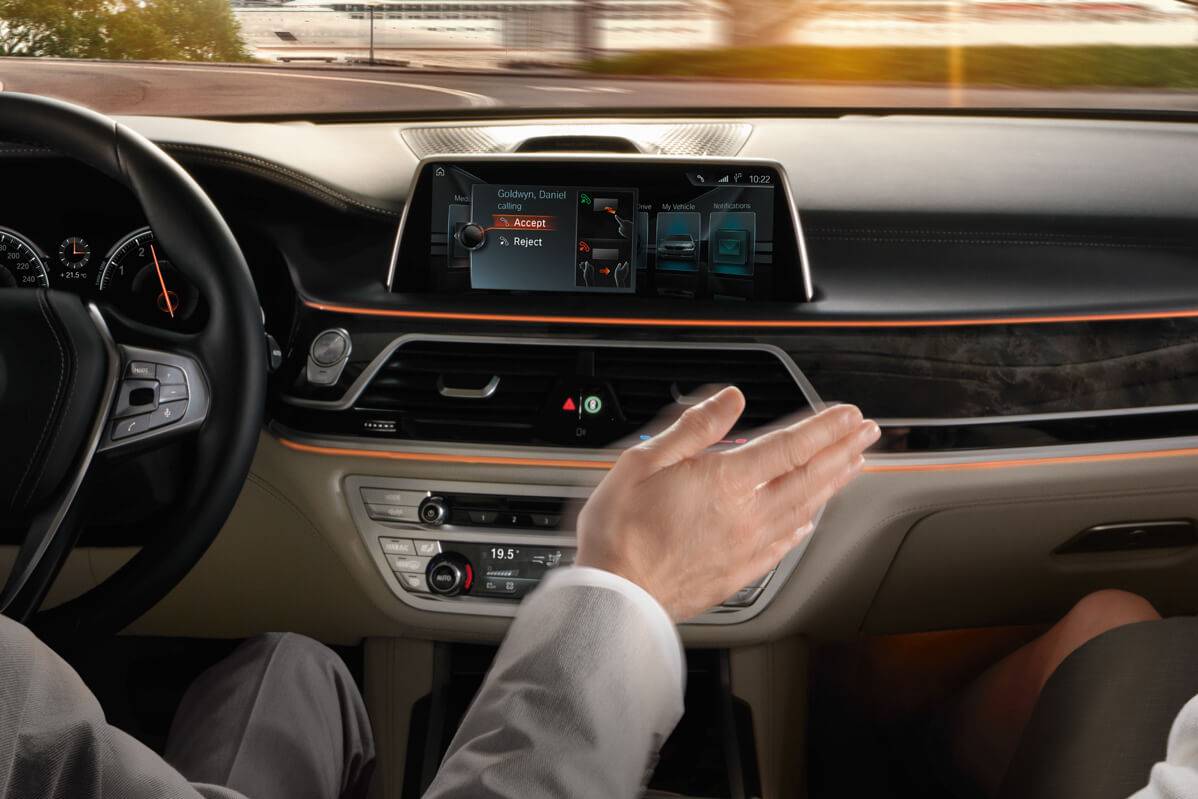

Want to control your iDrive system the easiest way possible? With BMW gesture control, it only takes a few simple gestures to use the most vital functions of your iDrive system. Just raise your hand up and let the magic happen.
The BMW gesture control retrofit based on 3D technology will help you safely interact with the iDrive system while remaining focused on the road. Making simple moves captured by a 3D camera, you can accept or decline a phone call, turn up or down the audio volume, set navigation destinations, change the angle in the 360-degree vehicle view and more.
Here’s a set of all predefined gestures you can use:
  • Accepting a Call / Confirming pop-up: Point one finger towards the iDrive screen and pull it back
  • Rejecting a Call / Closing pop-up: Swipe your hand to the right

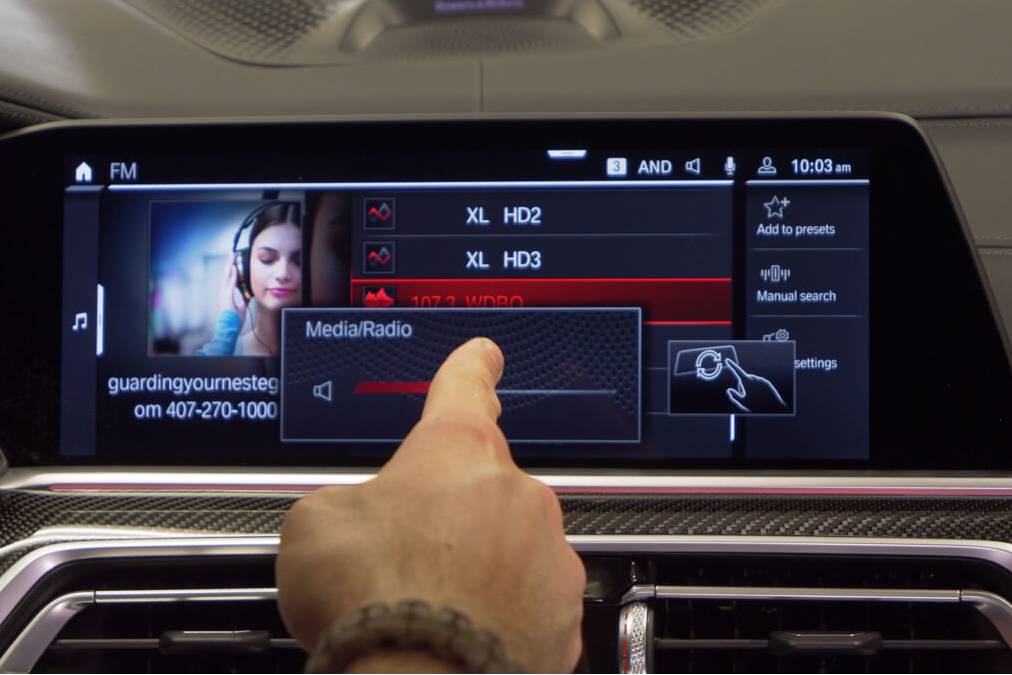

  • Turning up the volume: Circle your finger clockwise
  • Turning down the volume: Rotate your finger counter-clockwise

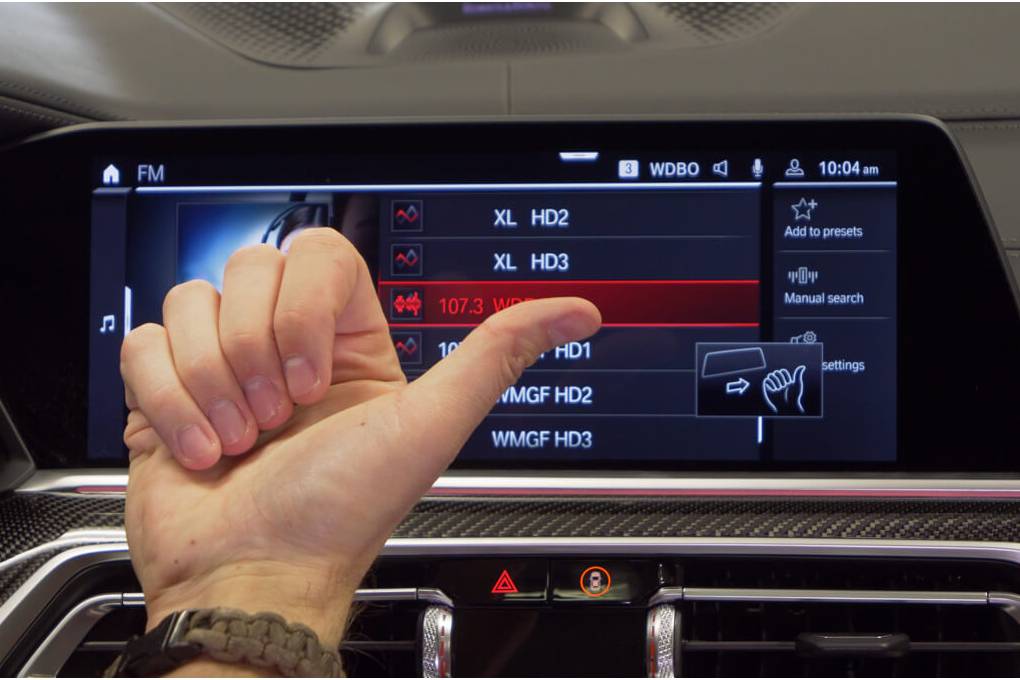

  • Skip back: Move extended thumbs to the left
  • Skip forward: Move extended thumbs to the right
  • 2 configurable gestures: Extend index and middle fingers, or extend 5 fingers, form a fist and extend 5 fingers again
  • Changing the 360-degree Rear View Camera angle: Pinch and drag to the left or right. NOTE: Your BMW has to be equipped with a Rear View Camera to include this option.

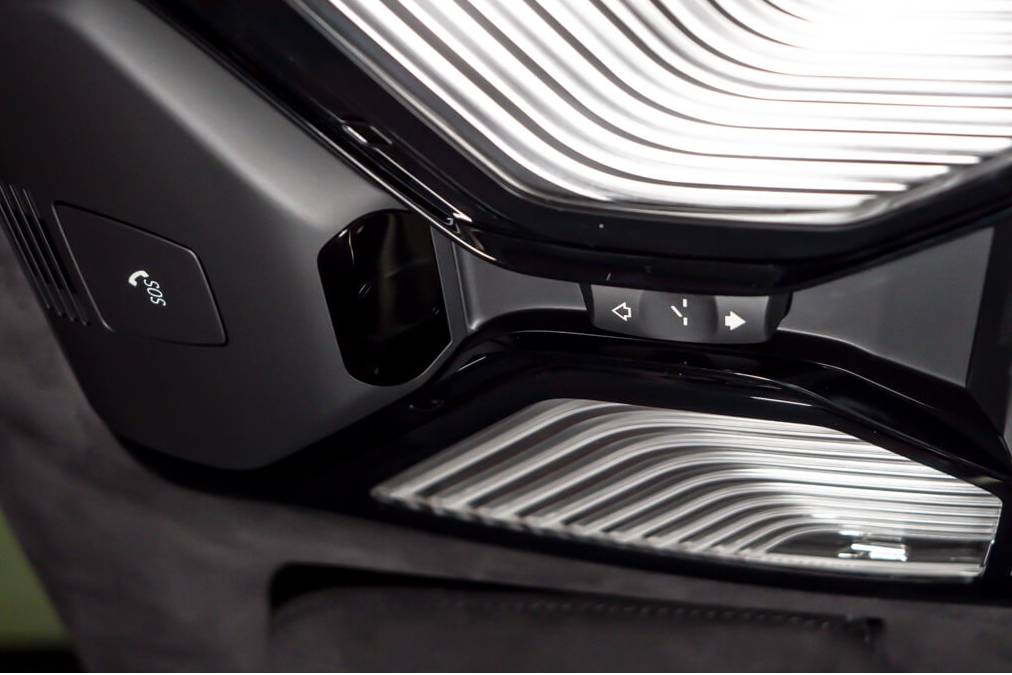

Sensors located in the roof lining of the car will translate these hand gestures, as long as you gesticulate properly in front of the center console, above the gearshift lever.
The BMW gesture control is originally an element of BMW Live Cockpit Professional (SA 6U3), but if your late-model G-Series car is equipped with this option and does not include the gesture control feature, we can retrofit it for you .

Installation

The process itself consists of 2 main steps:

  1. Fully plug & play installation (takes up to 1h)
  2. Coding (after the installation is finished, it is necessary to schedule a remote coding session with a BimmerTech technician)

The installation will require replacing the overhead console and adding 2 wires from the overhead console to a module in the passenger footwell area.

The kit includes all parts necessary for a complete installation:

  • Sunroof module with a camera (S6U3A)
  • Wiring harness

If you do not have a coding interface cable, you will need to purchase one for your coding session.

The installation is 100% reversible. No permanent modifications to the interior/exterior of your car are needed. The installation instructions appear in the personal account within 72 hours after the purchased product is shipped. They are created and customized for each specific model. But in case of any additional questions, our technical support is always ready to help.


Compatible with:
BMW 1 Series: Convertible E88, Coupé E82, 3-door Hatchback E81, 5-door Hatchback E87, 5-door Hatchback F20, 3 - door Hatchback F21, Sedan F52; BMW 2 Series: Active Tourer F45, Convertible F23, Coupe F22, Coupe M2 F87, Grand Tourer F46; BMW 3 Series: Coupe E92, Convertible E93, Gran Turismo F34, Sedan E90, Sedan F30, Sedan F35, Sedan M3 F80, Touring E91, Touring F31; BMW 4 Series: Convertible F33, Coupé F32, Gran Coupé F36, M4 Convertible F83, M4 Coupé F82; BMW 5 Series: Gran Turismo F07, Sedan E60, Sedan F10, Sedan G30, Sedan M5 F90, Touring G31, Wagon E61, Wagon F11; BMW 6 Series: Convertible E64, Convertible F12, Coupé E63, Coupé F13, Gran Coupé F06, Gran Turismo G32; BMW 7 Series: Hybrid F04, Long Sedan E66, Long Sedan E67, Long Sedan F02, Long Sedan F03, Long Sedan G12, Sedan E65, Sedan F01, Sedan G11; BMW i3 Series: I01; BMW X1 Series: Crossover E84, Crossover F48, Crossover F49; BMW X2 Series: SUV F39; BMW X3 Series: SUV E83, SUV F25, SUV G01; BMW X4 Series: Crossover F26; 0: X5 SUV E70; BMW X5 Series: SUV F15, SUV F85; BMW X6 Series: Crossover E71, Crossover F16, Crossover M F86, Hybrid E72; BMW Z4 Series: Roadster E89; Mini: Clubman F54, F55, F56, Convertible F57, Countryman F60, Paceman R60, Paceman R61,

See lessmore
