BMW X4 (G02) Harman Kardon Upgrade – Alpha One Case Study

"I was wondering if the Alpha One kit would be worth it? Would Alpha One sound that much better? After installing the complete kit (with amp) I have to say… Yes. Definitely. For sure. Without a doubt."

–Steve

Most of our case studies start from the same place: a customer with a factory system that was never going to sound good, finally doing something about it. This one's different.

Steve's 2025 BMW X4 M40i came with Harman Kardon – the best audio option BMW offered for this car, and a system plenty of owners are perfectly happy with. So the question he was asking isn't "how do I fix this?" It's "is there actually more to get?" That's a harder question, and a more interesting one.

Where we started – Stock BMW G02 Harman Kardon system (S688A)

The Harman Kardon Surround Sound System (option code S688A) sits at the top of what BMW offered in the G02 X4. On paper, it's a genuinely serious setup.

Straight from the factory, it consists of:

• 7 tweeters

• 7 midrange speakers

• 2 underseat woofers (8 ohm)

• 10-channel amplifier

That's 16 speakers distributed around the cabin, driven by a dedicated amplifier rather than the head unit. Since Steve's car runs the MGU head unit, the amp sits in the trunk as a Receiver Audio Module, taking its signal from the head unit over a fiber optic connection rather than conventional wiring.

Compared to the HiFi system most North American BMWs get, this is a substantial step up – more speakers, better placement, and a proper multi-channel amp behind them. Nobody's describing it as bad.

So what's actually missing?

Factory BMW G02 Harman Kardon disadvantages

The honest answer is that Harman Kardon's weaknesses only show up once you start asking something of it.

The first is power.

In BMWs running iDrive 7 and up, the S688A amplifier is rated at around 464W across all channels – a noticeable step down from the roughly 600W figure in earlier, pre-iDrive 7 cars with the same option code. Spread across 16 speakers, that's less headroom than the speaker count suggests, and it's the reason the system starts sounding strained rather than simply louder past a certain point on the volume bar.

The second is tuning.

Harman Kardon in BMWs is voiced for a very wide audience, which is a reasonable commercial decision and a compromise all the same. The result is a system that can get harsh through the mids and highs at volume rather than more detailed, and a bass response that hits hard but runs out of low-end extension earlier than you'd want.

None of that makes HK a bad system. It makes it a factory system – engineered to satisfy BMW X4 (G02) Harman Kardon Upgrade – Alpha One Case Studya broad range of buyers at a specific production cost, rather than tuned around how any one person actually listens.

That gap is exactly what Steve wanted to find out about.

Why did the customer choose Alpha One?

Steve had never installed car audio before. Not once. So the decision wasn't only about sound quality – it was also about whether he'd be able to actually pull it off himself.

What made the difference:

• A complete kit for his exact car – speakers and amplifier together, matched to the S688A system rather than adapted to it.
• Genuinely plug-and-play fitment – factory mounting points, factory connectors, no splicing.
• Support he could actually reach.

The last one, as it turned out, mattered more than he could suspect.

What have we changed in this car?

Everything. Steve went for the full overhaul, replacing every factory speaker along with the amplifier.

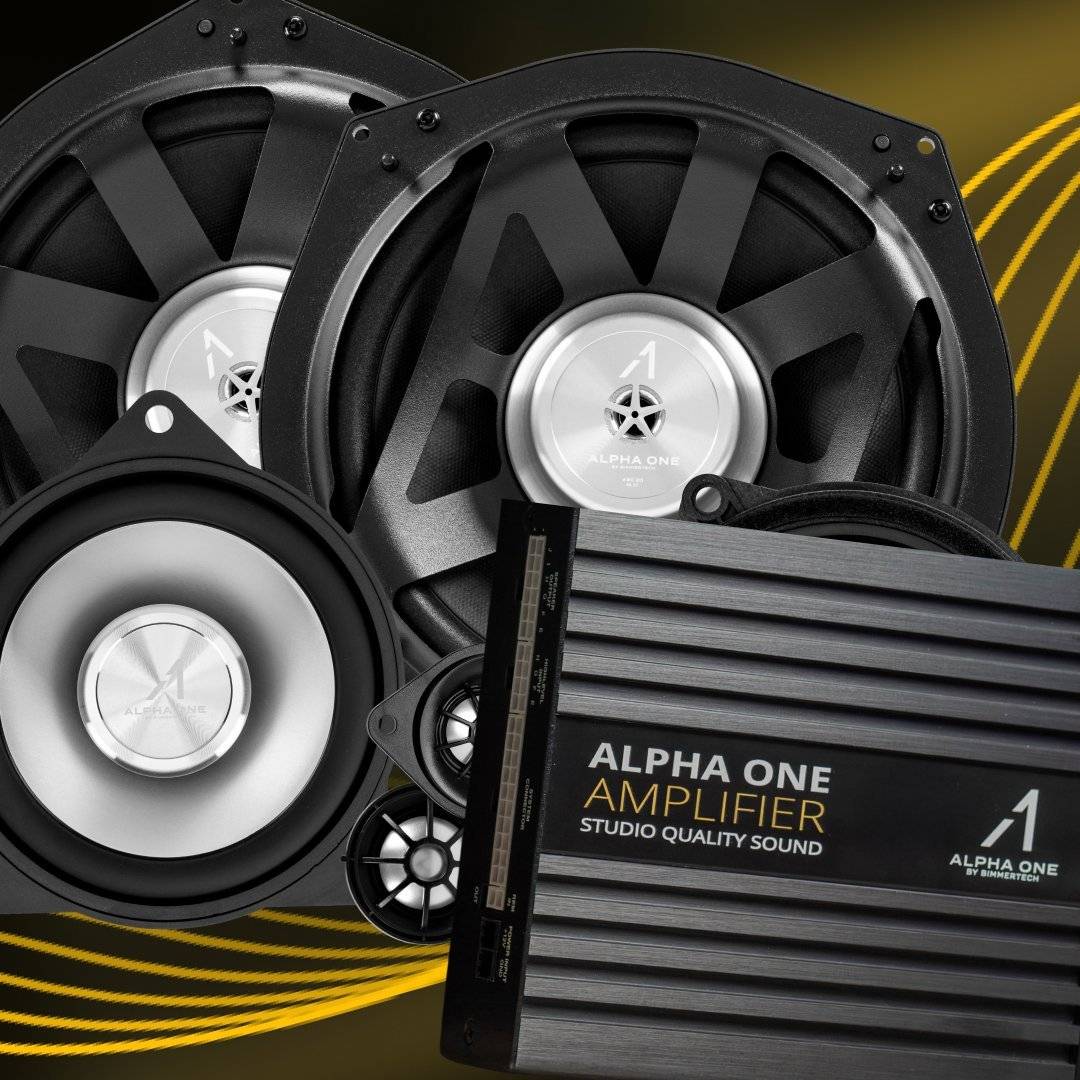

The kit he ordered contained:

• 7 Alpha One A10 Tweeters

• 6 Alpha One A45 & 1 A40 Midrange Speakers (door, dash, and rear positions)

• 2 Alpha One A90 Underseat Woofers (2 Ohm)

• 1 Alpha One UP10 Amplifier

As always with our amplifiers, Steve's shipped with a personalized DSP tuning file loaded onto it, built around the music he actually listens to. We ask every customer for this when they order – it's the difference between an amplifier that's simply more powerful and one that's more powerful and voiced for the person using it.

How to install the BMW X4 (G02) sound upgrade?

Thanks to our custom mounting brackets and plug-and-play harnesses, nothing here requires cutting, splicing, or permanent modification. Everything reverses cleanly if you ever sell the car. Below is a brief overview of the process.

CAUTION! This is for illustration only – a full, model-specific installation guide comes with every kit.

1. Front door speakers – remove the door trim, swap the midrange and tweeter, reinstall the trim.
2. Rear door speakers – same process at the rear, midrange only.
3. Dash and center speakers – pop off the grilles, unscrew the housings, replace the drivers, reassemble.
4. Rear side and pillar tweeters – remove the relevant trim panels to access the factory tweeter positions.
5. Underseat woofers – unbolt and tilt the seat, lift the carpet, unbolt the woofer housing, replace the driver, reassemble in reverse.
6. Amplifier – access the trunk side panel, disconnect the factory harness from the RAM, connect the Alpha One plug-and-play harness, mount the new amp on its bracket, reconnect, replace the panel.

Steve, who had never done any of this before, handled the entire speaker installation himself. The amplifier was where he reached out to our support team – and that's genuinely what they're there for.

If DIY isn't your thing at all, our Installer Finder will show you who can do it for you nearby.

Full review – How did the customer feel afterward?

"I have a 2025 X4 M40i that had the upgraded HK sound system. I was wondering if the Alpha One kit would be worth it? Would Alpha One sound that much better? After installing the complete kit (with amp) I have to say... Yes. Definitely. For sure. Without a doubt. More detail in highs, mids, and lows with volume so loud you feel the music. If you are wondering if Alpha One is that much better than HK, it is. I installed it myself and I have never installed car audio before, albeit BimmerTech customer support helped me with the amp."

Two things worth pulling out of that.

First, "more detail in highs, mids, and lows" is the specific improvement we'd expect here, and it's not the same as "louder." Steve already had 16 speakers. What he didn't have was the power to drive them cleanly or the tuning to get the most out of them.

Second, he'd never installed car audio in his life and still completed the job. That's not an accident – it's what plug-and-play is supposed to mean.

How much does a BMW X4 (G02) Harman Kardon upgrade cost?

It’s $3,674 for the complete Alpha One Speaker set plus the amplifier, covering all 16 factory speaker positions, the custom amp bracket, and every plug-and-play harness needed. Shipping is free.

Tight on a budget? Start with the amplifier only

Steve went all in, but you don't have to.

If you've got Harman Kardon and a fixed budget, the amplifier is the smarter first move. The HK speakers aren't the weak link in that system – the 464 W of factory power is. Adding a proper amplifier gives your existing speakers considerably more clean power to work with, along with a DSP tune built around your preferences rather than the factory's compromise.

You'll still hit the limits of the stock drivers eventually. But you'll have the power reserve already in place, ready for a speaker swap whenever you decide to make one, and you'll be enjoying better sound in the meantime.

Is the BMW G02 Harman Kardon (S688A) upgrade by Alpha One worth it?

If you're starting from HiFi or Base audio, the case for upgrading is obvious. Starting from Harman Kardon, it's a fair question – and Steve's answer was about as unambiguous as they come.

What you're getting isn't just better hardware. It's a system tuned to your listening preferences instead of to a market average, with enough clean power behind it that volume translates into detail rather than distortion. Add the custom DSP tune, the model-specific installation instructions, the 2-year amplifier warranty, and support that will walk a complete first-timer through an amp install, and it's the whole package rather than a box of parts.

Harman Kardon is a good system. It's just not the ceiling of what’s possible with the factory mounting locations.
